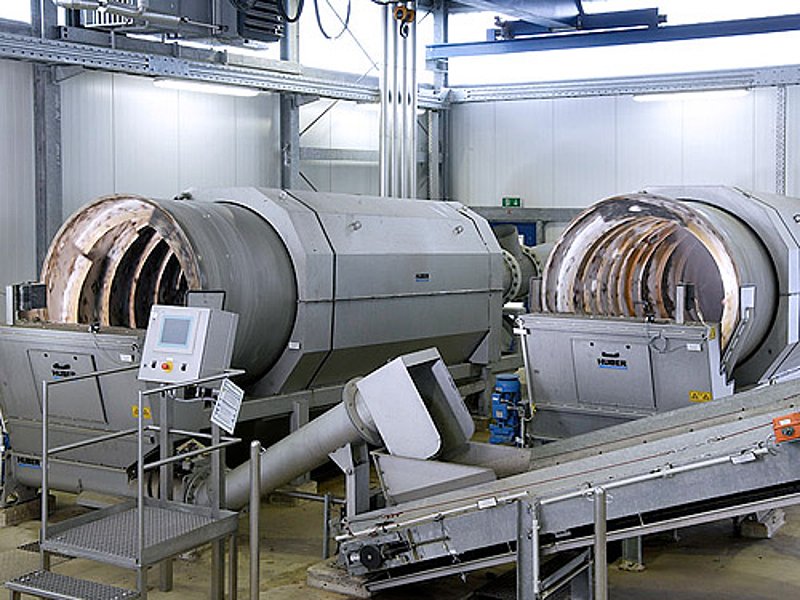

Sludge Acceptance Plant RoFAS

Manufacturer: Huber Technologies

Wash drum for efficient and reliable coarse material separation for septic sludge
Rotating high-performance screening drum for extreme applications.
Reliable, clog-free solids transport through forced guided material transport within the drum.
Solids washing and dewatering by means of a subsequent HUBER Screenings Wash Press, type WAP®.
 High solids throughput
 Optional simultaneous emptying of several vehicles
 Minimum wear
 Two-dimensional screening
While wash water is added to pre-wash and homogenise the raw material within the HUBER Sludge Acceptance Plant, the perforated plate of the wash drum retains all particles > 10 mm, which are dewatered and then discharged into a skip. Since only coarse material > 10 mm is separated, the volume of the resultant residues is vastly reduced with virtually the complete mineral material being further treated in the down-stream HUBER Coanda Grit Washer RoSF4. The resultant coarse material can then be further separated into a mineral and organic fraction by means of a coarse material washer.

 Wash Drum with high solids throughput even with problematic material (tresses, grease, stones)
 High hydraulic capacity even with high solids contents
 Defined separation size due to two-dimensional screening
 Feeding from a conveyor, through a launder channel or pressure line
 Completely encased unit
 Insensitive to coarse material
 3 to 100 mm separation size
 Screened wastewater can be used as wash water
 Short tanker vehicle emtpying times
 Optional simultaneous emptying of several vehicles
 Minimum wear, reduced maintenance
 Compact, space-saving design
 Low energy demand
 Manufactured entirely of stainless steel for maximum corrosion resistance
