Hydrasub 25
Manufacturer: MP Pumps
2-1/2" Submersible Pump

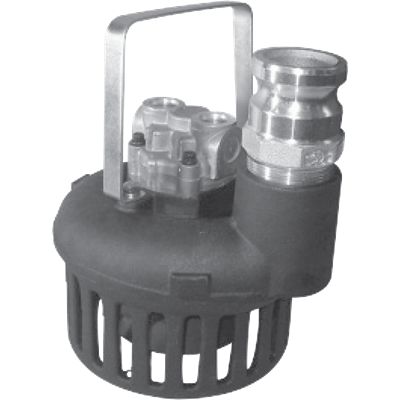

HYDRASUB 25
Hydraulically driven, the HYDRASUB 25 submersible pump is lightweight and compact. This self priming centrifugal pump has no problem running while its dry, which results in less upkeep throughout its lifetime. The submersible pump was designed for the industrial, marine, OEM, and agricultural applications.
This self-priming pump is made with a high strength aluminum alloy that is anodized for corrosion resistance. This pump features a stainless steel impeller, ball bearing, and a gerotor type hydraulic motor.
APPLICATIONAgricultural, Industrial, Marine, OEM
MATERIALS OF CONSTRUCTIONAluminum
FLOWUp to 430 GPM
HEAD FEETUp to 97'
IMPELLER3.90" stainless steel
DRIVE OPTIONSHydraulic motor .45 cu. in., Hydraulic motor .58 cu. in.
FEATURESCarrying handle, Compact, lightweight design, Corrosion resistant, Pumps down to a depth of 3/4", Quiet operation with gerotor motor, Self-priming, can run dry without damage
DISCHARGE2-1/2" NPT with A-type cam and groove fitting included
MAX SOLID SIZEUp to 1/2”
