ICS/ICSF

Manufacturer: Xylem

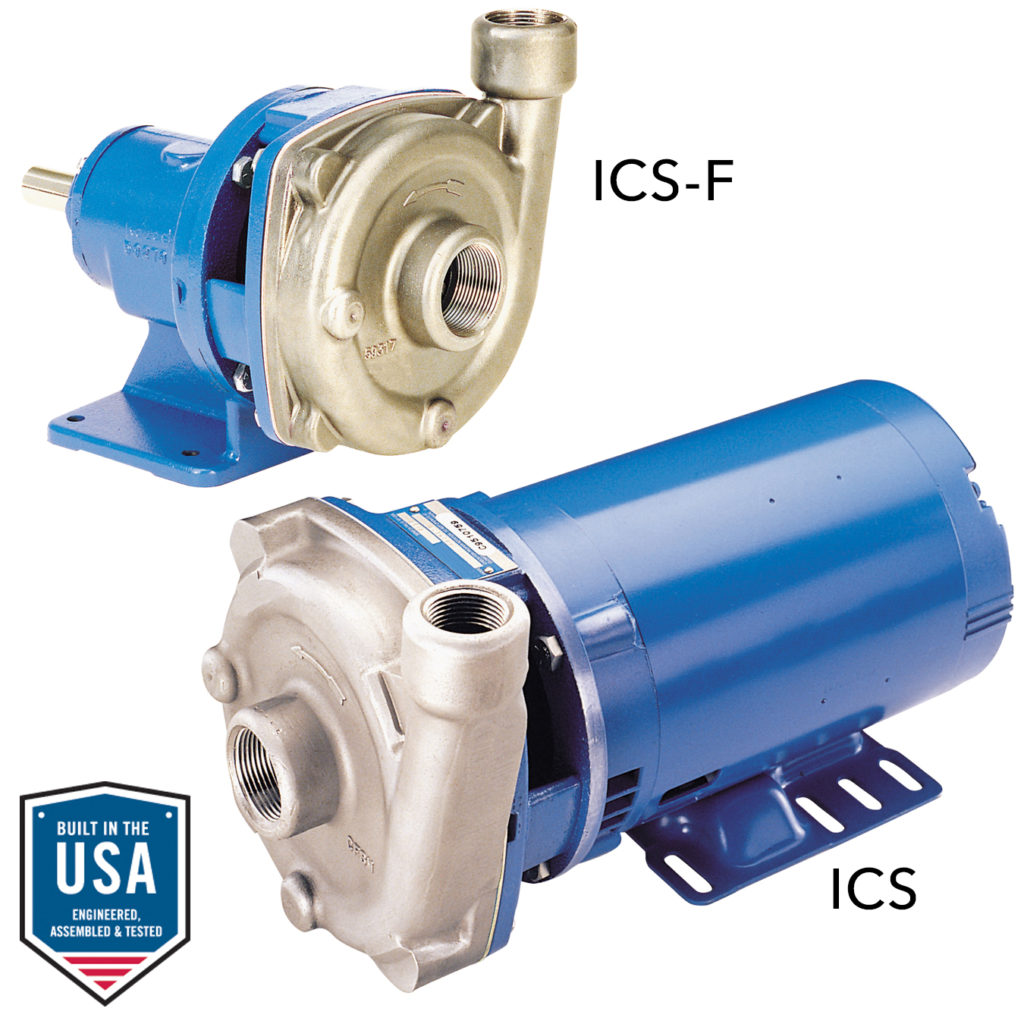

ICS/ICSF Stainless Steel Pumps

Residential Commercial Open Impeller 316 Stainless Steel End Suction Pumps
G&L Series ICS/ICSF and 3657/3757

APPLICATIONS:
• Designed for ultra pure water chemical and general services.
• Washer equipment
• Ultra pure water systems
• Scrubbers
• Chemical transfer
• Water reclamation and treatment
• Beverage processing
• Pharmaceutical service

• Superior Materials of Construction: Precision investment cast 316 stainless steel liquid end components for corrosion resistance and strength.
• Frame Mounted Design: Flexibility of installation and driver arrangements.
• Open Impeller Design: Spherical handling to 3/8″ reduces chance of clogging and required maintenance time.
• Back Pull Out Design: Simplifies maintenance by allowing the casing to remain in the piping during disassembly.
• Close Coupled Design: Compact design saves space and simplifies installation.
• Casing Features: Investment cast 316 stainless steel construction with NPT threaded suction and discharge optional drain and vent with stainless steel plugs. Four position discharge orientation.
• Mechanical Seals: Standard John Crane Type 21 seal with carbon versus ceramic faces Viton elastomers and 316 stainless steel metal parts. Optional seals are available for high temperature and mild abrasive services.
• Drive Motors: NEMA standard 56J frame motors with rugged ball bearing design for continuous duty. Versions are available in both single and three phase with a variety of enclosures and voltage to match your service requirements.
