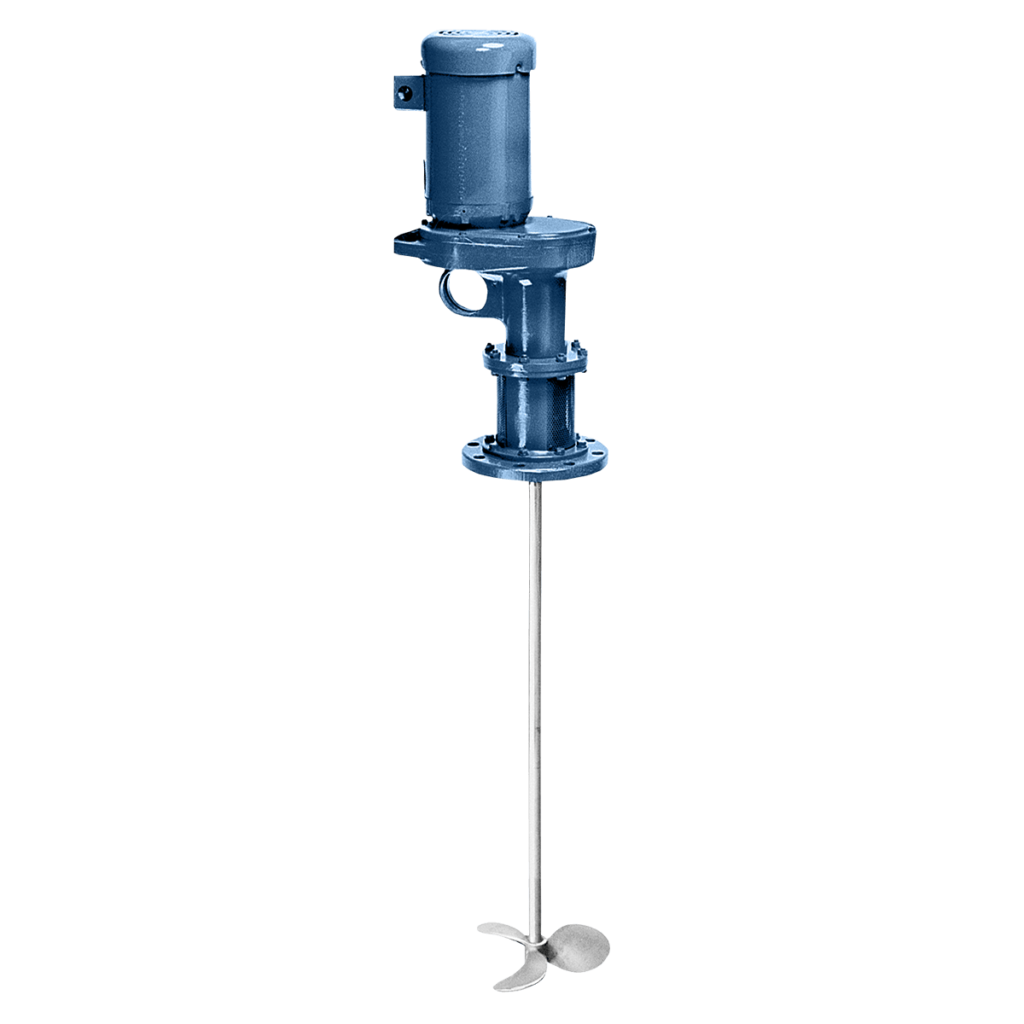

JG Series
Manufacturer: Neptune Mixer
Neptune’s JG Series is the most powerful gear drive mixer Neptune has to offer. JG Series is best for difficult mixing applications handling viscosities ranging from 100 cP to 25,000 cP and handling up to 5,000 gallons (18,927 liters).
• Clamp or cup plate mount
• Heavy helical gear, 350 rpm motor
• Grease filled gearbox eliminates oil and the possibility of oil contamination of process
• No clutches to slip, wear or replace
• Square pitch 1.0 ratio marine propellers are used exclusively. Flow coefficients and power consumption characteristics equal those of the best hydrofoil impeller designs
• Vibration-absorbing pad as a standard feature
• Shaft bearings permanently lubricated
• Heavy helical gear, 350 rpm motor
• Grease filled gearbox eliminates oil and the possibility of oil contamination of process
• No clutches to slip, wear or replace
• Square pitch 1.0 ratio marine propellers are used exclusively. Flow coefficients and power consumption characteristics equal those of the best hydrofoil impeller designs
• Vibration-absorbing pad as a standard feature
• Shaft bearings permanently lubricated
PROPELLER AND SHAFT MATERIAL316SS as standard, optional coatings such as rubber, or PVC available
HOUSING MATERIALCast aluminum
MOTORSTotally-Enclosed Fan-Cooled, Explosion-Proof Enclosures Class 1 Group D, Air Motor, Variable Speed 35 to 350 rpm TEFC
SHAFT LENGTH48" (1,219 mm) to 72" (1,829 mm)
SHAFT DIAMETER3/4" (19 mm) to 1-1/4" (32 mm)
PROPELLER SIZE10” (254 mm) to 16" (406 mm)
