LAA 1212
Manufacturer: American Warming and Ventilating
Louver Depth12"

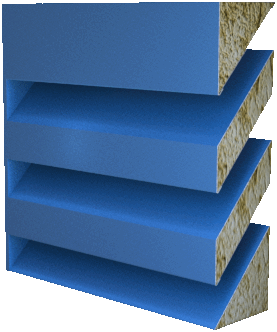

DescriptionAcoustical Louver
Free Area3.46 sqft or 22%
Water Peneration1089 fpm
Pressure Drop0.10 in w.g at 1089 fpm and 3931 scfm
Frame Material0.080" Thick 6063 T5 Extruded Aluminum
Blades Material0.061" Thick 6063 T5 Extruded Aluminum
Blade Angle45 degrees
Blade Spacing9"
Blade OrientationHorizontal
Screen OptionsBird Screen, Insect Screen
MullionExposed
Miami DadeNo
SightproofNo
