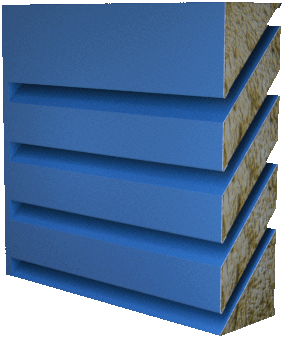

LAA 86
Manufacturer: American Warming and Ventilating
8" Acoustical Louver with 27% Free Space
Louver Depth8"
DescriptionAcoustical Louver
Free Area4.24 sqft or 27%
Water Penetration990 fpm
Pressure Drop0.10 in w.g at 990 fpm and 4198 scfm
Frame Material0.080" Thick 6063 T5 Extruded Aluminum
Blades Material0.061" Thick 6063 T5 Extruded Aluminum
Blade Angle45 degrees
Blade Spacing6"
Blade OrientationHorizontal
Screen Options
MullionExposed
AMCA
Miami Dade-No
SightproofNo
