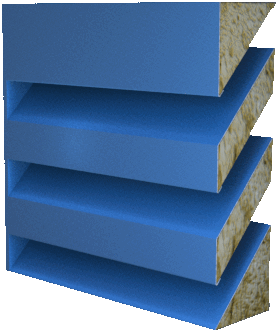

LAG 1215

Manufacturer: American Warming and Ventilating

12" Acoustical Louver with 35% Free Space

Louver Depth12"

DescriptionAcoustical Louver

Free Area5.53 sqft or 35%

Water Penetration1173 fpm (pressure drop velocity only)

Pressure Drop0.13 in w.g at 1173 fpm and 6487 scfm

Frame Material-0.080" Thick 6063 T5 Extruded Aluminum

Blades Material0.061" Thick 6063 T5 Extruded Aluminum

InsulationWater Resistant Sound Absorbing Material

Blade Angle45 degrees

Blade Spacing12"

Blade OrientationHorizontal
