LAG 88

Manufacturer: American Warming and Ventilating

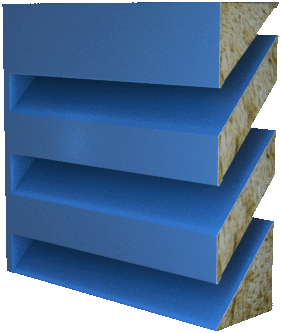

8" Acoustical Louver with 25% Free Space

Louver Depth8"

DescriptionAcoustical Louver

Free Area4.01 sqft or 26%

Water Penetration956 fpm

Pressure Drop0.09 in w.g at 956 fpm and 3834 scfm

Frame Material0.080" Thick 6063 T5 Extruded Aluminum

Blades Material0.061" Thick 6063 T5 Extruded Aluminum

Blade Angle45 degrees

Blade Spacing8"

Blade OrientationHorizontal

Screen Options-Exposed

MullionCertified for Air Performance and Water Penetration

Miami DadeNo
