LE-57
Manufacturer: American Warming and Ventilating

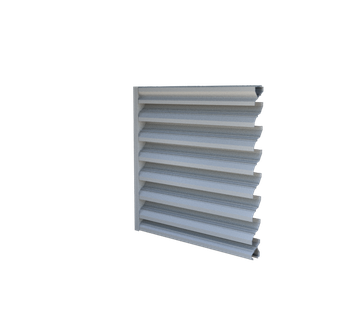

2" Thin line, Fixed, Non-Drainable Louver
Louver Depth2"
DescriptionThin line, Fixed, Non-Drainable Louver
Free Area7.20 sqft or 45%
Water Peneration523 fpm
Pressure Drop0.06 in w.g at 523 fpm and 3766 scfm
Frame Material0.063" Thick 6063-T5 Extruded Aluminum
Blades Material0.063" Thick 6063-T5 Extruded Aluminum
Blade Angle45 degrees
Blade Spacing3"
Blade OrientationHorizontal
Screen OptionsBird Screen, Insect Screen
MullionExposed or Hidden
AMCACertified for Air and Water Penetration
Miami - DadeNo
SightproofNo
