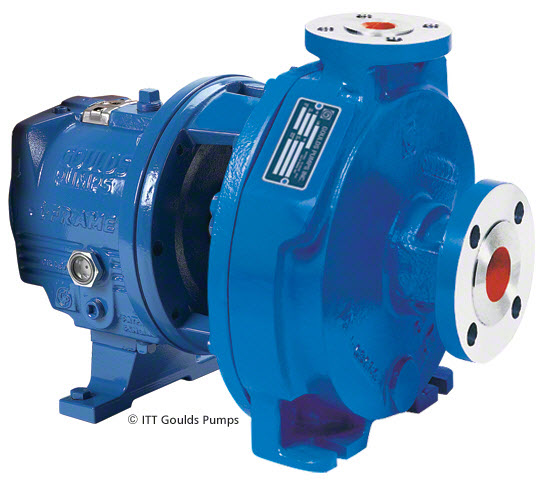

LF 3196
Manufacturer: ITT Goulds
Goulds LF 3196 i FRAME Low Flow ANSI Process Pumps. The LF 3196 i FRAME process pump line is specifically designed to provide superior performance for low flow services of the Chemical Process Industries
• Capacities to 220 GPM (50 m3/hr)
• Heads to 925 feet (282 m)
• Temperatures to 700° F (371° C)
• Pressures to 450 PSIG (3102 kPa)
• Concentric (Circular) Casing
• Radial Vane Impeller
• TaperBoreTM/ BigBoreTM Seal Chambers
• i FRAME Power Ends
• ANSI PLUSTM Features
• Optional Centerline Mounted Casings
• Back Pull out Design
• Parts Interchangeable with Goulds Model 3196 i FRAME
• External Impeller Adjustment
• Easy Retrofit
• ANSI B15.1 Coupling Guard
• Ductile Iron Frame Adapter
• Raised Face Flanges
• Optional Shaft Guard
• Heads to 925 feet (282 m)
• Temperatures to 700° F (371° C)
• Pressures to 450 PSIG (3102 kPa)
• Concentric (Circular) Casing
• Radial Vane Impeller
• TaperBoreTM/ BigBoreTM Seal Chambers
• i FRAME Power Ends
• ANSI PLUSTM Features
• Optional Centerline Mounted Casings
• Back Pull out Design
• Parts Interchangeable with Goulds Model 3196 i FRAME
• External Impeller Adjustment
• Easy Retrofit
• ANSI B15.1 Coupling Guard
• Ductile Iron Frame Adapter
• Raised Face Flanges
• Optional Shaft Guard
Chemical Process
