Lyes

Manufacturer: Lutz

Product information "Drum pump - Lyes"

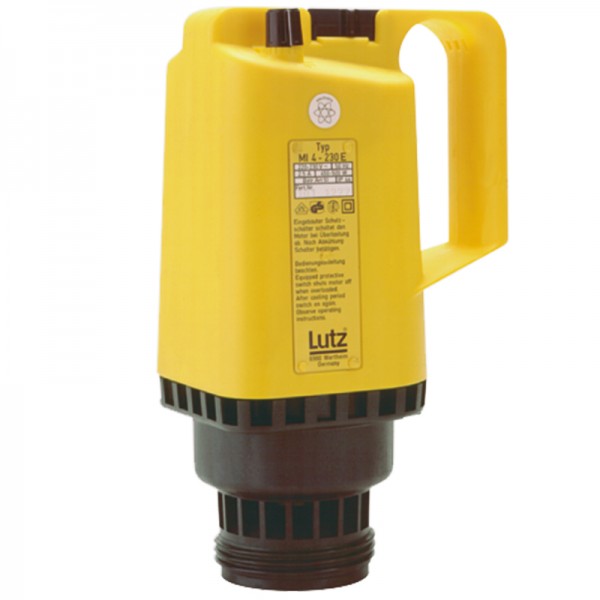

Motor: MI 4 - 500W, 230V (for a higher flow rate and head)
Immersion depth: 1000 mm (sealless)

Description:
The Drum pump is suitable for corrosive, aqueous to slightly viscous media. Perfect for siphoning or transferring caustic solutions.
• Media examples: Sodium hydroxide, potassium hydroxide, ammonia water, formic acid and acetic acid etc.
• Pump tube equipped with Lutz original hand wheel
• Suitable for filling or transferring oils such as rapeseed oil and vegetable oil

Technical data
▼ MEDIUM ▼
Suitable media: Essigsäure, Natriumhydroxid, Ameisensäure, Kaliumhydroxid, Ammoniakwasser
▼ WERKSTOFFE | MATERIAL | MATERIAAL ▼
Pump tube (material): PP (polypropylene)
Impeller (material): PP (polypropylene)
Static seal (material): no seals in contact with the medium
Mechanical seal (material): no seals in contact with the medium
Bearing (material): ETFE / PTFE
Drive shaft (material): Edelstahl (1.4571)
▼ FÖRDERDATEN | OPERATING DATA | SPECIFICATIES ▼
Flow rate (up to max. GPM)*: 23, 25
delivery head (up to max. ft)*: 52 , 69
Temperature of medium (max °F): 122
density (up to kg/dm³): 1.4, 2.8
Operating pressure (max. psi): 87
Viscosity (up to max. cps)*: up to 500 cps (e.g. hydraulic oil), 1000
▼ PUMPWERK | PUMP TUBE | POMPWERK ▼
Type of impeller: Radial-flow impeller
Seal type: Sealless (SL)
Immersion length: from 39" (1000 mm), from 47" (1200 mm)
Immersion tube diameter (up to mm): 1.6
Thread (inch) outside: 1 1/4"
▼ EIGENSCHAFTEN | PROPERTIES | EIGENSCHAPPEN ▼
Type of drive: Electric, Compressed air
Output (W): 640, 1000
Voltage: 120
Frequency (Hz): 60

• Optionally with electric or compressed air drive
• No lubricants and therefore no contamination of the pumped medium by lubricants
• Optimized Drum emptying
• Universally resistant PTFE shaft bearings
• Maintenance without special tools
• Seal modules of the seal-less (SL) pump can be replaced
