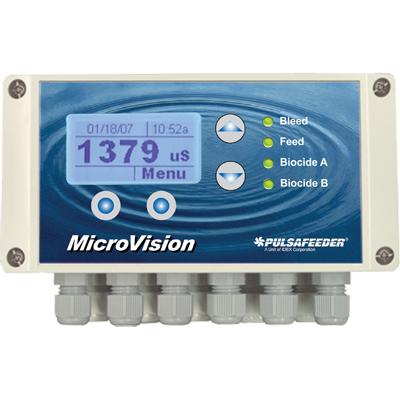

MicroVision
Manufacturer: Pulsafeeder
The MicroVision Controller series features is innovative Toroidal sensor technology. Toroidal sensors are not susceptible to fouling and eliminate the need for routine cleaning and calibration. The MicroVision controller comes standard with selectable timer, Dry contact/ Hall Effect water meter input, dual biocide with pre bleed, lockout, inhibitor interface, and four programmable start times per biocide, 4 20mA output, dry contact alarm output and 3 drum level inputs.
• Digital inputs
• Outputs
• Simple Programming Intuitive menu with soft keys touch pad
• Toroidal Probe No calibration required
• Easy installation and easy to use
• Heavy duty enclosure
• Languages English / Spanish / Portuguese
EnclosuresNEMA 4X / IP65
Flow Switch Pressure125 psi / 8.6 bar
Flow Switch Temperature122 °F / 50 °C Max
Conductivity Range0 9,999 μS/cm
Power Input90 VAC-50/60HZ-5A, 250 VAC-50/60 HZ-5A
Controller DisplayLCD
TimersSelectable:, Limit, Percent, % Post Bleed With Limit, Water Meter, Dual Biocide Timers
Outputs4 20 mA Isolated Analog, Dry Contact Alarm, Bleed-Solenoid valve or motorized ball valve
InputsFlow Switch, 3 Drum Level, Dry Contact Water Meter, Hall Effect
Flow Switch Activate Flow RateApprox. 1 gpm/3.78 lpm
Average Current Draw5 Amps Max
ControlsBleed: Solenoid valve or motorized ball valve, Feed: Inhibitor, Biocides: Dual biocide with pre bleed-Lockout-Inhibitor interface-Four programmable start times per biocide
Product Options• Prewired • Flow Assembly • Standard Panel and Flow Assembly • Panel Mounted with Pumps • Cable Length
AccessoriesCorrosion Coupon Racks Metering Pumps Motorized Ball Valves Solenoids Water Meters
