P40BR Red Series Ball valve
Manufacturer: Pumps 2000

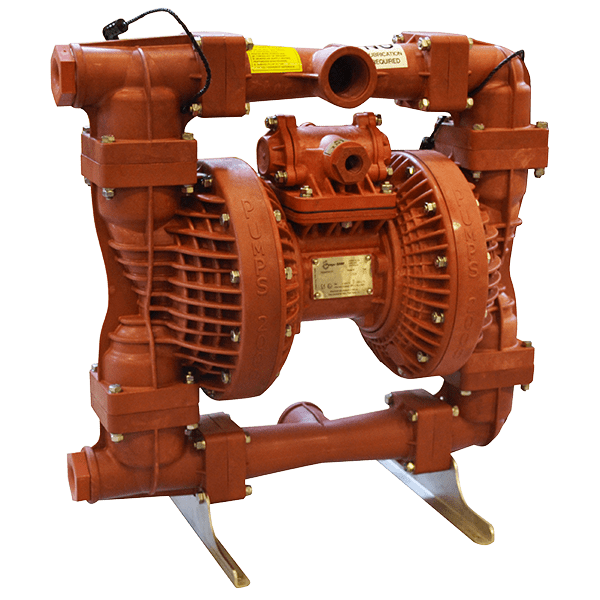

Pumps 2000 Red Series (FRAS) air operated double diaphragm pumps are ATEX certified pumps suitable for continuous use in hazardous Explosive atmospheres. FRAS Series pumps are Fire Resistant & Anti Static.
The Red Series has an ATEX M1 rating. The pump housing is made of a nylon blend and the internal elastomers are hytrel. Other materials are available to suit your specific application. Please contact us with your application details so that we may select the right mix of materials for your specific application.
• Tested at 100 psi supply air pressure (Not to exceed 125 psi)
• 50lbs / 22.7kg Pump Weight
• Passes suspended solids up to .55” / 14mm diameter
• Maximum flow rate of 0 117 gpm / 443 L/min
• No Lubrication Required
• Self Priming
• 50lbs / 22.7kg Pump Weight
• Passes suspended solids up to .55” / 14mm diameter
• Maximum flow rate of 0 117 gpm / 443 L/min
• No Lubrication Required
• Self Priming
