PoxyBase Frame Mounted
Manufacturer: Basetek
Long Coupled/Frame Mounted

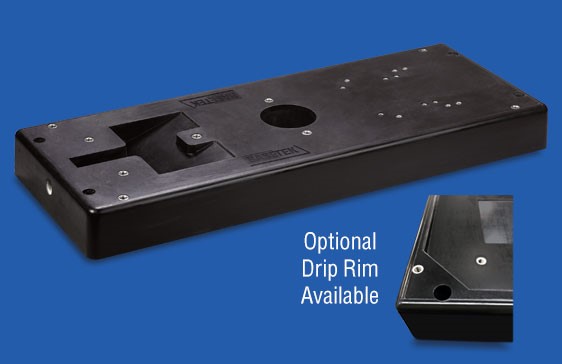

BaseTek PoxyBase® non metallic polymer composite baseplates are designed for frame mounted / long coupled ANSI/ASME pump combinations. Available in 16 models to accommodate all NEMA motor frames. Custom configurations to accept ISO pump and IEC motor combinations are also available.
Long coupled frame mounted combinations
Available in 16 sizes
Meets ANSI/ASME B73.1 2001 standards
Conforms to PIP RESP002
• Available In 16 ANSI/ASME Sizes Save time with off the shelf delivery for B73.1M 2001 Model Pumps.
• Corrosion Resistant Eliminates maintenance and upkeep.
• Integrated Drip Pan Provides additional containment with drain connection (may be omitted).
• Stainless Steel Inserts Reduce corrosion and cast in place to prevent pull out (options available).
• Leveling Holes Speeds installation with threaded holes as standard.
• Grout Hole Meets ANSI/ASME specifications for full compliance (may be omitted).
• Flat Surface To 0.002”/Ft. Speeds alignment and eliminates soft foot for a reliable installation.
• Custom Hole Patterns Easily include your unique hole pattern to accommodate any equipment.
• Corrosion Resistant Eliminates maintenance and upkeep.
• Integrated Drip Pan Provides additional containment with drain connection (may be omitted).
• Stainless Steel Inserts Reduce corrosion and cast in place to prevent pull out (options available).
• Leveling Holes Speeds installation with threaded holes as standard.
• Grout Hole Meets ANSI/ASME specifications for full compliance (may be omitted).
• Flat Surface To 0.002”/Ft. Speeds alignment and eliminates soft foot for a reliable installation.
• Custom Hole Patterns Easily include your unique hole pattern to accommodate any equipment.
