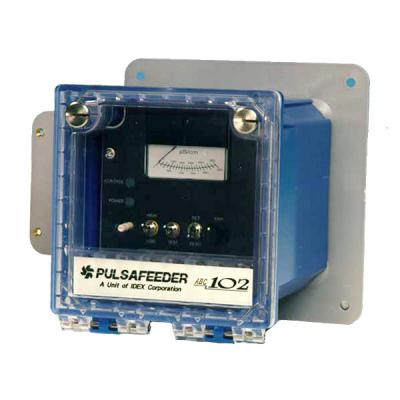

PulsaTrol ABC
Manufacturer: Pulsafeeder
The ABC Boiler Controller Series features analog technology and includes selectable scale, temperature compensation and a rugged enclosure designed to NEMA 4x for reliable and accurate monitoring. This simplified design provides automated control and provides electrical conduit connections as standard for blow down valve and accessory activation.
• Conductivity range 0 20000 μS/cm
• Relay test switch
• Power indicator LED
• Front panel calibration
• Front panel dial set point
EnclosuresNEMA 4X
Conductivity RangeFront Panel Selectable: 0 500 μS/cm, 0 1000 μS/cm, 0 2000 μS/cm, 0 5000 μS/cm, 0 10000 μS/cm, 0 20000 μS/cm
Power Input110 VAC-50/60 HZ, 220 VAC-50 HZ, 220 VAC-60 HZ
Controller Set Point DifferentialApprox. 6% (+/ 1%) of set point
Controller DisplayAnalog
Outputs1 @ 5 Amps Each-8 Second Delay
Selectable Sampling ModesJumper Selectable, Continuous, Timed
Sample TimeJumper Selectable Hours: 5, 2, 8, 24
Timed Sample Blowdown DurationJumper Selectable Minutes: 5, 1, 2, 4
Average Current Draw120 VAC: Amps-(1) 5 A Each
ControlsConductivity
AccessoriesCorrosion Coupon Racks Metering Pumps Motorized Ball Valves Solenoids Water Meters
