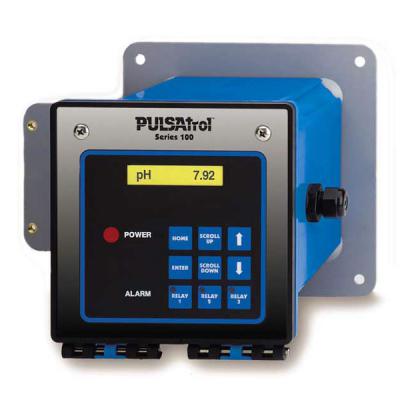

PulsaTrol MBC

Manufacturer: Pulsafeeder

The MBC Series controllers offers many options including conduit connections where hard wiring is preferred, sample mode programmable for either timed or continuous sampling, selectable timer option allows dosing by one of the following percent, pulse with accumulator, percent post blow down or a limit timer. An alarm output relay and alarm dry contact are additional options along with the optional programmable proportional 4 20mA output.

• High resolution 10 bit A/D converter
• Adjustable analog sample sensitivity
• Fully isolated differential inputs for all circuits
• Keypad activated hand/off/auto control of all relay outputs
• Modular hardware and software for easy access and servicing, Easy to use

EnclosuresNEMA 4X

Flow Switch PressureStandard: 125 psi / 8.6 bar, High Pressure: 200 psi / 14 bar

Flow Switch TemperatureStandard: 125 °F / 52 °C Max, High Pressure: 70 °F / 21 °C Max

Conductivity Range0 500 μS/cm, 0 2000 μS/cm, 0 5000 μS/cm, 0 10000 μS/cm, 0 20000 μS/cm

Power Input90 250 VAC-50/60 HZ-100 VA

Controller Set Point DifferentialProgrammable

Controller DisplayLighted Display 1 x 8 Alpha Numeric

TimersProgrammable:, Percent, Pulse with Accumulator, Percent Post Blow Down, Limit Timer, 28 Day Biocide

Outputs3 Output Relays / 1 Analog

Alarm Dry Contact1

Inputs2 Digital / 1 Analog

Selectable Sampling ModesContinuous, Timed Sample

10 Bit A D ResolutionStandard

Front Panel HOA ControlStandard

Average Current DrawLine Voltage at 600 VA Per Relay, 120 VAC: Amps-5

ControlsConductivity, Alarm Output-Optional, Dry Contact-Optional, 4 20mA Output-Optional

Product Options• Selectable Timer • Alarm Output Relay • Alarm Dry Contact • 4 20mA Output

AccessoriesSolenoids Motorized Ball Valves Water Meters Corrosion Coupon Racks Metering Pumps
