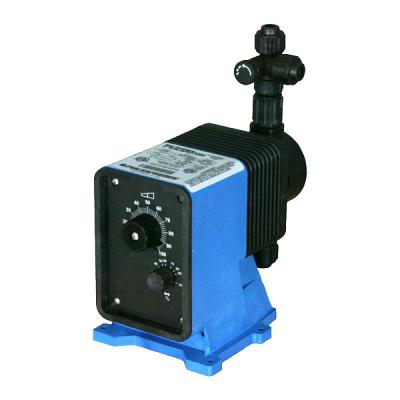

PULSAtron Series E DC

Manufacturer: Pulsafeeder

The PULSAtron Series E DC offers manual function controls over stroke length and stroke rate providing a turn down ratio of 100:1. Our best value in a pump with this capacity and powered by 12 Volt DC. Four distinct models are available, having pressure capabilities to 150 psi (10 bar) @ 6 gpd (0.25 lph), and flow capacities to 44 gpd (7.0 lph) @ 100 psi (7 bar). Metering performance is reproducible to within± 3% of maximum capacity.
Over 25 years of excellence, PULSAtron pumps carry agency approvals of ETL, ETL Sanitation, CE and NSF 61 (PVDF material and Degassing Head models).

• Powered by 12 Volt DC
• Manual control by on line adjustable stroke rate and stroke length
• Highly reliable timing circuit
• Water resistant for outdoor and indoor applications
• Guided ball check valve systems to reduce back flow and enhance outstanding priming characteristics
• Few moving parts and wall mountable
• Safe and easy priming with durable leak free bleed valve assembly (standard)

Pump Head MaterialsGFPPL, PVC, PVDF, 316 SS

Fitting Material AvailableGFPPL, PVC, PVDF

Bleed ValveSame as fitting and check valve selected (except 316SS)

Turndown Ratio100:1

Seat O Rings AvailablePTFE, CSPE, Viton

Balls AvailableCeramic, PTFE, 316 SS, Alloy C

DiaphragmsPTFE faced CSPE backed

Tubing AvailableClear PVC, White PE, PVDF

Power Input12.6 VDC Nominal Range 11.8 14.0 VDC

Peak Input PowerLS02 / 13 / 14: Amps-138.6 Watts, LS44: Amps-189 Watts, Average Input Power At Max SPM: LS02 / 13 / 14 Amps: 50.4 Watts / LS44 Amps: 100.8 Watts

Average Current DrawLS02 / 13 / 14: Amps-4.0, LS44: Amps-0.5

Accessories-Dampeners Gauges KOP Kits Pre Engineered Systems Process Controllers Tanks
