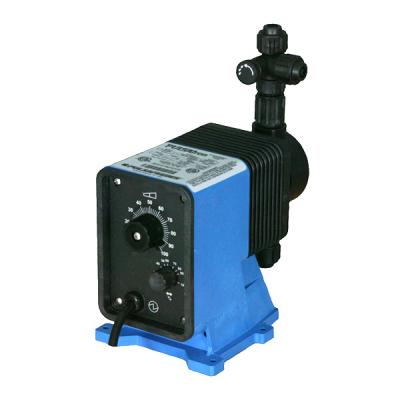

PULSAtron Series E

Manufacturer: Pulsafeeder

The PULSAtron Series E pump features manual control by on line adjustable stroke rate and stroke length. It has been agency approved for demanding outdoor and indoor applications. Pressure capabilities to 250 psi (17 bar) @ 5 gpd (0.8 lph) and flow capacities to 44 gpd @ 100 psi (7 bar), with a turndown ratio of 100:1. Metering performance is reproducible to within +/ 3% of maximum capacity.
Over 25 years of excellence, PULSAtron pumps carry agency approvals of ETL, ETL Sanitation, CE and NSF 61 (PVDF material and Degassing Head models).

• Manual control by on line adjustable stroke rate and stroke length
• Highly reliable timing circuit
• Circuit protection against voltage and current upsets
• Solenoid protection by thermal overload with auto reset
• Water resistant for outdoor and indoor applications
• Guided ball check valve systems to reduce back flow and enhance outstanding priming characteristics
• Few moving parts and wall mountable
• Safe and easy priming with durable leak free bleed valve assembly (standard)

Pump Head MaterialsGFPPL, PVC, PVDF, 316 SS

Fitting Material AvailableGFPPL, PVC, PVDF

Bleed ValveSame as fitting and check valve selected (except 316SS)

Turndown Ratio100:1

Seat O Rings AvailablePTFE, CSPE, Viton

Balls AvailableCeramic, PTFE, 316 SS, Alloy C

DiaphragmsPTFE faced CSPE backed

Tubing AvailableClear PVC, White PE, PVDF

Power Input115 VAC-50/60 HZ-1 ph, 230 VAC-50/60 HZ-1 ph

Peak Input Power300 Watts, Average Input Power At Max SPM: 130 Watts

Average Current Draw115 VAC: Amps-1.0, 230 VAC: Amps-0.5

Product Options-Dampeners Gauges KOP Kits Pre Engineered Systems Process Controllers Tanks
