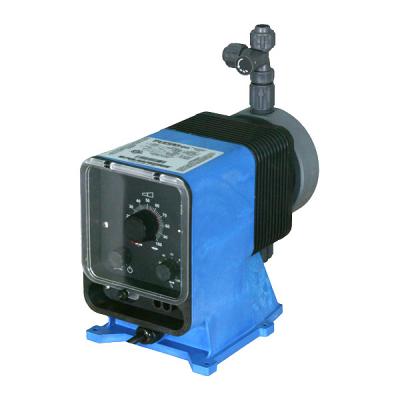

PULSAtron Series E Plus

Manufacturer: Pulsafeeder

The Pulsation Series E Plus offers manual control over stroke length and stroke rate as standard with the option to choose between 4 20mA and external pace inputs for automatic control. Twenty distinct models are available, having pressure capabilities to 300 psi (21 bar) @ 3 gpd (0.5 lph), and flow capacities to 600 gpd (94.6 lph) @ 30 psi (2 bar), with a turndown ratio of 100:1. Metering performance is reproducible to within± 2% of maximum capacity.
Over 25 years of excellence, PULSAtron pumps carry agency approvals of ETL, ETL Sanitation, CE and NSF 61 (PVDF material and Degassing Head models).

• Automatic control available with 4 20mADC direct or external pacing with stop function
• Manual control by on line adjustable stroke rate and stroke length
• Auto Off manual switch
• Highly reliable timing circuit
• Circuit protection against voltage and current upsets
• Panel mounted fuse
• Solenoid protection by thermal overload with auto reset
• Water resistant for outdoor and indoor applications
• Indicator lights panel mounted
• Guided ball check valve systems to reduce back flow and enhance outstanding priming characteristics
• Safe and easy priming with durable leak free bleed valve assembly (standard)

Pump Head MaterialsGFPPL, PVC, PVDF, 316 SS

Fitting Material AvailableGFPPL, PVC, PVDF

Bleed ValveSame as fitting and check valve selected (except 316SS)

Turndown Ratio100:1

Seat O Rings AvailablePTFE, CSPE, Viton

Balls AvailableCeramic, PTFE, 316 SS, Alloy C

DiaphragmsPTFE faced CSPE backed

Tubing AvailableClear PVC, White PE, PVDF

Power Input115 VAC-50/60 HZ-1 ph, 230 VAC-50/60 HZ-1 ph

Peak Input Power300 Watts, Average Input Power At Max SPM: 130 Watts

Average Current Draw115 VAC: Amps-1.0, 230 VAC: Amps-0.5

Product OptionsOptional Control: 4 20mADC direct or external pacing with stop function

Accessories-Dampeners Gauges KOP Kits Pre Engineered Systems Process Controllers Tanks
