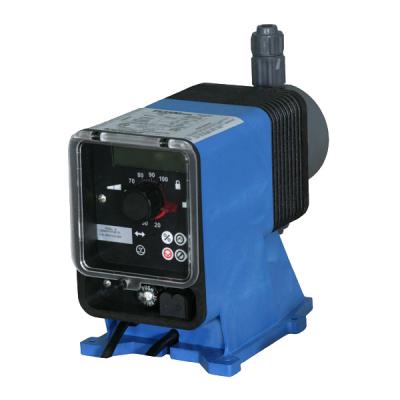

PULSAtron Series MP

Manufacturer: Pulsafeeder

The Pulsation Series MP is a true microprocessor controlled instrument for precise and accurate metering control. Packed with standard features, the Series MP include automatic control via 4 20mA or 20 4 mA inputs, external pace with stop feature and 16 character LCD display with support for English, French, and German languages. Nineteen distinct models are available, having pressure capabilities to 300 psi (21 bar) @ 3 gpd (0.5 lph), and flow capacities to 504 gpd (79.5 lph) @ 20 psi (13 bar), with a turndown ratio of 1000:1. Metering performance is reproducible to within± 2% of maximum capacity.
Over 25 years of excellence, PULSAtron pumps carry agency approvals of ETL, ETL Sanitation, CE and NSF 61 (PVDF material and Degassing Head models).

• Automatic control
• Fully scalable 4 20mA current signal
• Flow verification on select sizes
• Flow totalization
• Relay output for computer interface or AC power
• Simple prompts in plain language
• Available in four languages English French German and Spanish
• Alarm signals for signal loss full count circuit failure pulse overflow and pulse rate high
• Liquid low level indicator capability is standard
• Timed sequences can be set for selected intervals and rate for repetitive metering
• Pulse signals can be multiplied or divided by 1 to 999
• Flow rate is displayed as gph gpd or lph
• Large easy to read backlit LCD display

Pump Head MaterialsGFPPL, PVC, PVDF, 316 SS

Fitting Material AvailableGFPPL, PVC, PVDF

Bleed ValveSame as fitting and check valve selected (except 316SS)

Turndown Ratio1000:1

Seat O Rings Available

Balls AvailablePTFE, CSPE, Viton

DiaphragmsCeramic, PTFE, 316 SS, Alloy C

Tubing AvailablePTFE faced CSPE backed

Power InputClear PVC, White PE, PVDF

Peak Input Power115 VAC-50/60 HZ-1 ph, 230 VAC-50/60 HZ-1 ph

Average Current Draw300 Watts, Average Input Power At Max SPM: 130 Watts

Product Options115 VAC: Amps-1.0, 230 VAC: Amps-0.5

Accessories• Optional Control: Power Level Output Relay. Flow Verification on select sizes
