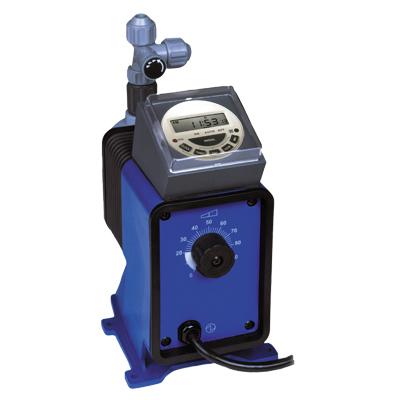

PULSAtron Series T7

Manufacturer: Pulsafeeder

The Pulsation Series T7 was designed to feed chemical products on a timed schedule. Typical applications include the feed of biocides in open air cooling towers. The feed cycle is initiated and controlled by the programmable timer. The Series T7 provides everything you need in one unique, compact package to create a simple and cost effective metering system for timed applications. A 7 day programmable timer controls the Series T7. The timer is programmable in 1 minute increments with up to 8 on/off cycles per day. Each timed event can be set to run any day of the week on a 7 day cycle. Other control features include a standby mode, continuous'ON' mode and the ability to adjust the stroke length from 0 to 100%. Four distinct models are available, having pressure capabilities to 100 psi (7.0 bar) @ 12 gpd (1.9 lph), and flow capabilities to 48 gpd (7.6 lph) @ 50 psi (3.3 bar), with a turndown ratio of 10:1. Metering performance is reproducible to within± 3% of maximum capacity.
Over 25 years of excellence, PULSAtron pumps carry agency approvals of ETL, ETL Sanitation, CE and NSF 61 (PVDF material and Degassing Head models).

• Complete timer control in one unique package
• Solid state 7 day electronic timer
• Isolated from earth ground
• Few moving parts and wall mountable
• Safe and easy priming with durable leak free bleed valve assembly (standard)

Pump Head MaterialsGFPPL, PVC, PVDF, 316 SS

Fitting Material AvailableGFPPL, PVC, PVDF

Bleed ValveSame as fitting and check valve selected (except 316SS)

Turndown Ratio10:1

Seat O Rings Available

Balls AvailablePTFE, CSPE, Viton

DiaphragmsCeramic, PTFE, 316 SS, Alloy C

Tubing AvailablePTFE faced CSPE backed

Power InputClear PVC, White PE, PVDF

Peak Input Power115 VAC-50/60 HZ-1 ph, 230 VAC-50/60 HZ-1 ph

Average Current Draw300 Watts, Average Input Power At Max SPM: 130 Watts

Accessories115 VAC: Amps-1.0, 230 VAC: Amps-0.5
