RPROP
Manufacturer: Rheinhuette Pumps

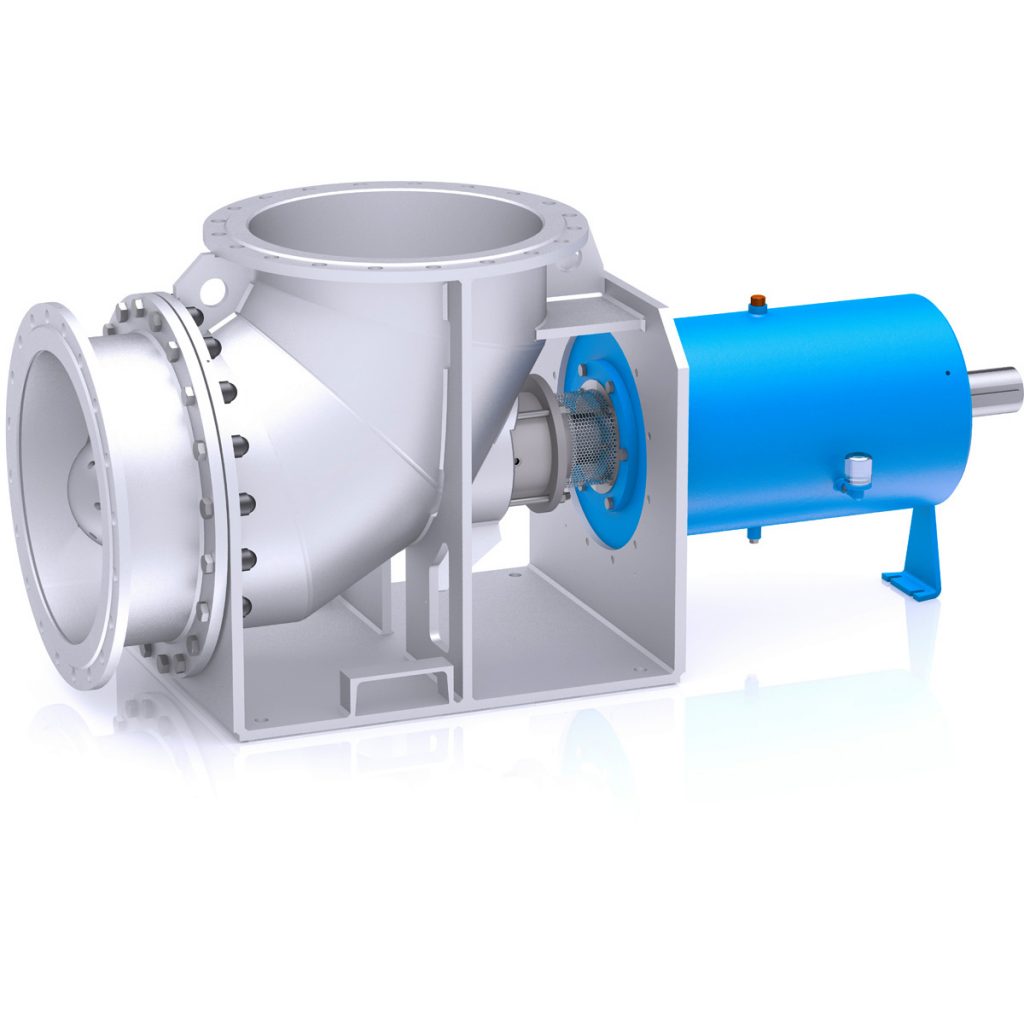

AXIAL FLOW PUMP IN METAL
• Design: horizontal, single-stage
• Directions of flow: operation in both directions of flow is possible
• Casing design: pipe elbow in welded or casted design (standard or FEM optimized)
• Impeller: adjustable propeller blades or inducer
• Bearing lubrication: oil lubrication
• Motor coupling: direct coupled, with V-belt drive, with cardan shaft or with gear-box drive
• Installation versions: base plate, base frame, steel structure or stilt mounting
• Ambient temperature: -20°C to +60°C
• Solid content limit value: ca. 5 %
• Directions of flow: operation in both directions of flow is possible
• Casing design: pipe elbow in welded or casted design (standard or FEM optimized)
• Impeller: adjustable propeller blades or inducer
• Bearing lubrication: oil lubrication
• Motor coupling: direct coupled, with V-belt drive, with cardan shaft or with gear-box drive
• Installation versions: base plate, base frame, steel structure or stilt mounting
• Ambient temperature: -20°C to +60°C
• Solid content limit value: ca. 5 %
MaterialMetal
DesignAxial Flow Pump
SizeDN 125 - DN 800
CapacityQmax. = 7.000 m3/h
HeadHmax. = 6 m
Temperatureup to +150 °C
Nominal Pressure6 bar
