RVKU
Manufacturer: Rheinhuette Pumps

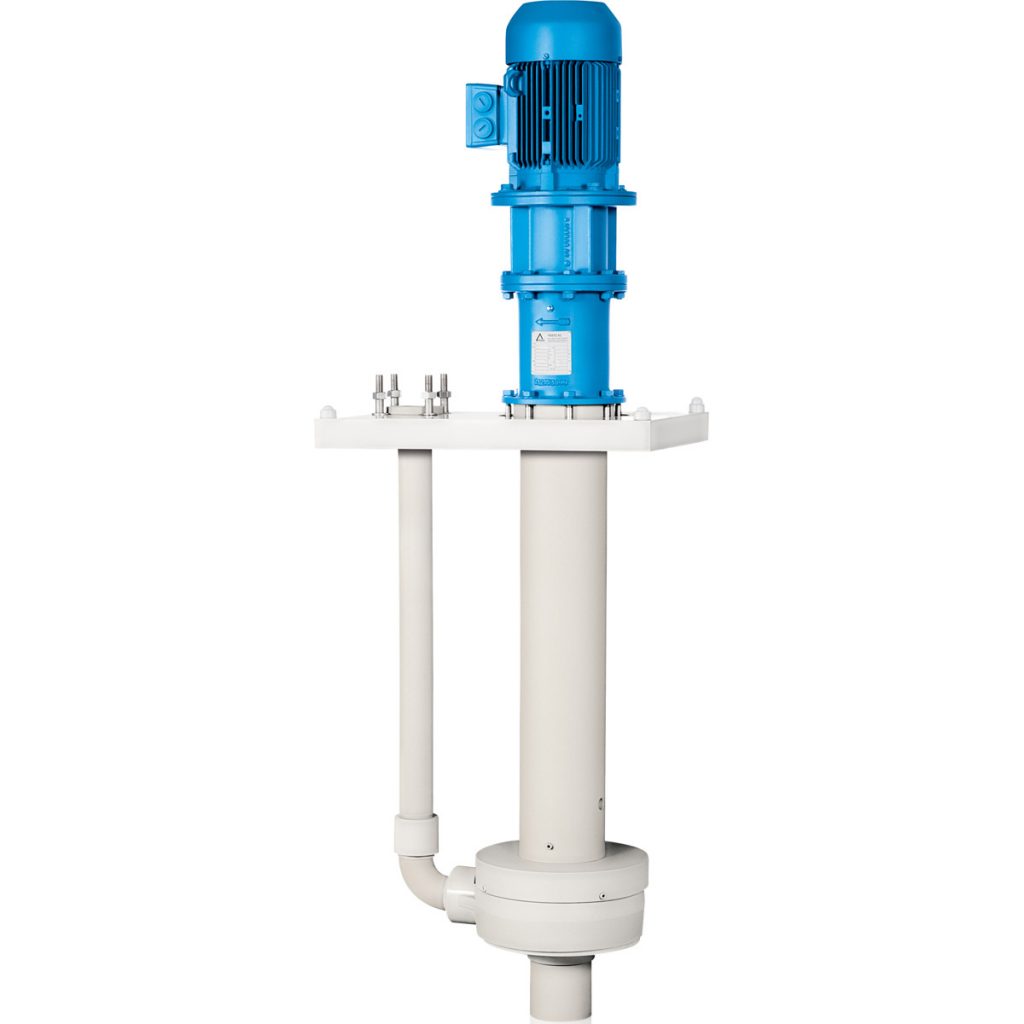

CHEMICAL CENTRIFUGAL PUMP IN PLASTIC
• Design: vertical, single-stage
• Construction: vertical design
• Casing design: single or double volute casing
• Pump installation: wet
• Impeller: semi-open or free-flow impeller (Typ RKuVF)*
• Bearing lubrication: grease lubrication
• Installation versions: sole plate for tank or steel structure
• Ambient temperature: -20°C to +60°C
• Solid content limit value: ca. 30 %
*only on request
• Construction: vertical design
• Casing design: single or double volute casing
• Pump installation: wet
• Impeller: semi-open or free-flow impeller (Typ RKuVF)*
• Bearing lubrication: grease lubrication
• Installation versions: sole plate for tank or steel structure
• Ambient temperature: -20°C to +60°C
• Solid content limit value: ca. 30 %
*only on request
MaterialPlastic
DesignVertical Centrifugal Pump, Free Flow Pump
SizeDN 32 - DN 250
CapacityQmax. = 1.000 m3/h
HeadHmax. = 70 m
Lengthup to 3 m
Temperature-40 °C to +90 °C
Nominal Pressure10 bar
