Series 120

Manufacturer: MP Pumps

2" x 1-1/2" Industrial Liquid Pump
SERIES 120

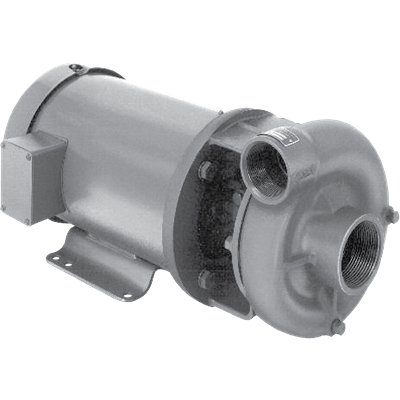

This end suction centrifugal pump is close-coupled to a standard NEMA JM motor. The special adaptor that is implemented into this Series 120 industrial liquid pump ensures no damage will reach the motor. This specific centrifugal pump model is cast iron accompanied by a bronze impeller. Stainless steel fasteners were designed to prevent rust from appearing throughout the life of this liquid pump.

All fasteners are stainless steel to reduce corrosion. Enclosed impellers are dynamically balanced to improve efficiency and bearing life.
Standard carbon / ceramic / Viton mechanical seal is self-adjusting and corrosion resistant to handle almost any liquid.
Completely tested “Wet End” PumPAKs are available without motors. The MP PumPAK® can be mounted to standard NEMA C frame motors in just minutes.

SUCTION AND DISCHARGE2" x 1-1/2" NPT

APPLICATIONAgricultural, Commercial, Industrial, Marine, OEM

MATERIALS OF CONSTRUCTIONCast iron

FLOWUp to 200 GPM

HEAD FEETUp to 135'

IMPELLER6" enclosed cast iron or bronze

MOTORUp to 7.5 HP

DRIVE OPTIONSClose coupled 145JM, Close coupled 184JM, Close coupled 184TC, Hydraulic motor .45 cu. in., Hydraulic motor .58 cu. in., Hydraulic motor .73 cu. in., Pedestal, PumPAK® (without motor)

SEALSpecial seal material combinations available (consult factory), Standard carbon / ceramic / Viton

MAX SOLID SIZE.24"
