Series 700
Manufacturer: MP Pumps
4" x 3" Industrial Liquid Pump

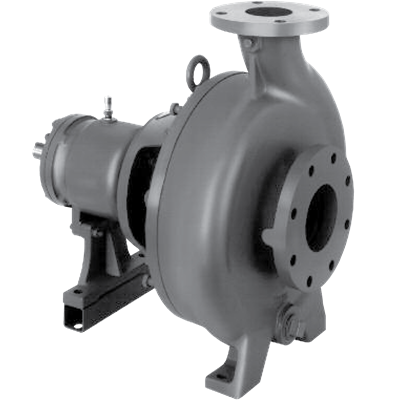

SERIES 700
The Series 700 end suction centrifugal pump features an ANSI A-40 design. Equip with an enclosed impeller and stainless steel fasteners, this high performing industrial liquid pump can move liquids up to 900 GPM. The Series 700 is constructed from high grade ductile iron to make sure it keeps its peak performance over time.
With enclosed impeller, capacities range from 900 GPM with heads up to 170 feet.
Enclosed impeller is dynamically balanced to improve efficiency and bearing life. Standard carbon / ceramic / Viton mechanical seal is self-adjusting and corrosion resistant to handle almost any liquid.
Tested pumps are available with or without motors. Various impeller diameters are available to suit different head/flow requirements.
SUCTION AND DISCHARGE4" x 3" 150# ANSI Flanges
APPLICATIONAgricultural, Commercial, Industrial, OEM
MATERIALS OF CONSTRUCTIONDuctile iron
FLOWUp to 900 GPM
HEAD FEETUp to 170'
IMPELLER13" enclosed
MOTORUp to 40 HP
DRIVE OPTIONSClose coupled 256JP, Pedestal
SEALSpecial seal material combinations available (consult factory), Standard carbon / ceramic / Viton
MAX SOLID SIZE.65"
