Series MDX

Manufacturer: MP Pumps

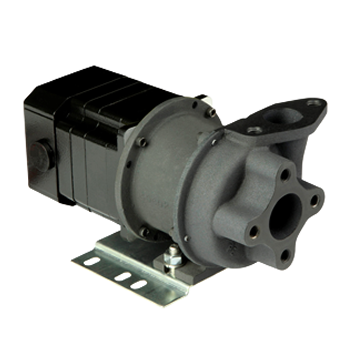

1" x 1" Industrial Liquid Pump
MDX
SERIES 30 end suction centrifugal pumps are close-coupled to standard NEMA “C” face motors. All models are available in cast iron, bronze or aluminum construction to suit a wide variety of liquids.

The MDX is a magnetically-driven sealless circulator that produces flows to 25 GPM and pressures to 20′ TDH, 12 or 24V DC with an optional brushless DC motor.

Dual 18" long 14 AWG red (positive) black (negative) power leads, Housing has 1" (4) bolt flanged suction & (2) bolt flanged discharge connections, Motor enclosure is splash and weather resistant, Motor has brushed or brushless configurations with sealed control electronics, Thermally protected against overload and overtemp with automatic reset

APPLICATIONAgricultural, Commercial, Industrial, Marine, OEM, Transportation

MATERIALS OF CONSTRUCTIONAluminum

FLOWUp to 25 GPM

HEAD FEETUp to 20'

IMPELLER2.5" semi-open stainless steel

DRIVE OPTIONSClose coupled 12V DC, Close coupled 24V DC

SEALMagnetically driven no mechanical seal required

BASE(2) bolt integrated mounting foot cast into pump housing

TEMPERATUREDesigned for operation in ambient temperture up to 200°F, Designed for use with fluids up to 220°F and sustained fluid temps up to 210°F

OPTIONSAdapters available to convert flanged connections to 1" female NPT, Optional mounting base is adjustable or removable
