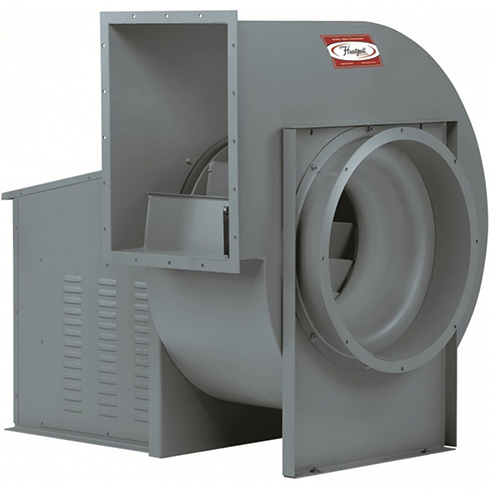

Series 03P
Manufacturer: Hartzell Air Movement
Backward Curved Centrifugal, Packaged - *Rapid Ship Available*
• Clockwise rotation (CCW not available from stock) with top horizontal discharge
standard. Rotatable in field. Stock fans cannot be rotated to BAD, TAD, and DB.
(Flanges interfere with base.)
• Class II construction. Housing of heavy gauge hot rolled steel.
• Wheels are non-overloading backward curved, with single thickness airfoil blades.
• Fans are stocked with shafts and bearings to accommodate maximum
performance as shown.
• Weather cover, drilled inlet and outlet flanges (1-1/2” wide), and ceramic shaft seal
to minimize leakage standard.
• Maximum temperature is 250°F
standard. Rotatable in field. Stock fans cannot be rotated to BAD, TAD, and DB.
(Flanges interfere with base.)
• Class II construction. Housing of heavy gauge hot rolled steel.
• Wheels are non-overloading backward curved, with single thickness airfoil blades.
• Fans are stocked with shafts and bearings to accommodate maximum
performance as shown.
• Weather cover, drilled inlet and outlet flanges (1-1/2” wide), and ceramic shaft seal
to minimize leakage standard.
• Maximum temperature is 250°F
Chemical
Food Processing
Heavy Industry
Pulp and Paper
Transportation
Food Processing
Heavy Industry
Pulp and Paper
Transportation
SIZE12"-36"
MATERIAL TYPESteel, SS304, SS316, Aluminum
PRESSURE RANGE0-1.5" s.p., 1.5-3" s.p., 3-8" s.p.,
TYPECentrifugal
ABS CERTIFIEDYes
AMCA CERTIFIEDYes
