SG 10

Manufacturer: American Warming and Ventilating

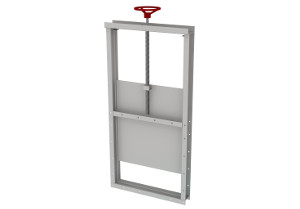

Guillotine/Slidegate Damper

Damper DepthVaries

DescriptionGuillotine / Slidegate

Max Face VelocityPer Design Criteria

Max Pressure15+ in. wg

Max Temperature350 F

Min SizePer Design Criteria

Max SizePer Design Criteria

Frame MaterialMild Steel Channel, Varies Per Design Criteria

Blade MaterialMild Steel Plate, Varies per Design Criteria

AxlesVaries Per Design Criteria

BearingsVaries Per Design Criteria


StopsMild Steel

Finish(1) Coat of Primer

ActuatorManual, Electric or Pneumatic Options Are Available

SealsVarious Designs Are Available (Specify Leakage Requirements)
