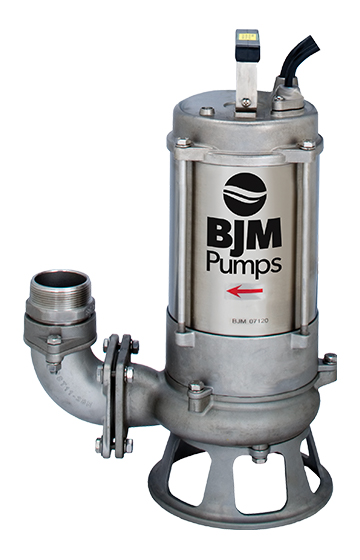

SKXF Series

Manufacturer: BJM Pumps

316 cast stainless steel pumps with shredder action impellers for municipal, industrial and agricultural wastewater. Side discharge and non clog single vane or double vane impellers for the passing of solids while delivering high volume of liquids. The SKXF Series shredder pumps are designed to obliterate solids by tearing, breaking and ripping them to pieces. The shredding action is caused by using a cutting impeller with a tungsten carbide tip against a spiral shaped diffuser plate. All wear and "wet" parts such as impeller, wear plate, oil housing, pump housing and inner pump top are made of cast 316 stainless material. The elastomers such as o rings, lip seals and gaskets are made of FKM.

• All parts exposed to pumped liquids (such as impeller, wear plate, oil housing, pump housing and inner pump top) are made of 316 stainless steel.
• Elastomers are made of FKM
• Longer power cord - Standard 33ft. power cord.
• Three seal motor protection - Motor is protected by double mechanical seals. Lower seal made of silicon carbide/silicon carbide and upper seal is made of carbon/ceramic. An additional lip seal has been installed above the impeller to help prevent abrasives such as dirt, silt or sand from entering into the seal chamber.
• Winding protection and (NEMA) Class R motor insulation with a thermal cut out switch that will allow the stator to have a winding temperature of up to 300°degrees F (150°C), superior to pumps with Class A and B insulation.
• Each pump is tested at factory, both for performance as well as safety. Level controls and level control systems are available.
• Specifications dependent on model and may change without notice.
• All single phase Fahrenheit pumps are supplied with a NEMA 4X control box including pump start components, Seal Minder relay, motor thermal sensor connections and (1) High Temperature wide angle float switch with 20' cable. These single phase controls meet UL 508A and cUL CSA 22.2 requirements.
