SL-100BT

Manufacturer: American Warming and Ventilating

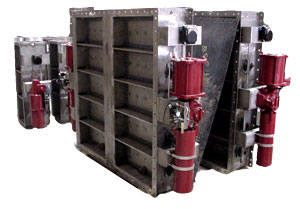

SL-100BT 12” Bubble Tight Isolation Damper
Bubble Tight, Single Thickness

Damper Depth12"

DescriptionBubble Tight, Single Thickness

Max Face Velocity6000 FPM

Max Pressure40 in. wg

Max Temperature200 F

Min Size12" x 12"

Max Size48" x 90"

Frame Material1/4" Thk. 304 Stainless Steel

Blade Material1/4" Thk. 304 Stainless Steel, 16" Max Width

Axles1-3/4" Dia. 303 Stainless Steel, Full Length

BearingsRelubricable Ball Bearings w/ Double Silicone O-Ring Stuffing Boxes

LinkageHeavy Duty Stainless Steel Arm and Bar, Stainless Steel Pins and Oil Impregnated Bronze Bearings

StopsStainless Steel

FinishMill

ActuatorManual, Electric or Pneumatic Options Are Available

SealsSilicone On Blade Perimeter (Replaceable)
