SWX125
Manufacturer: MP Pumps

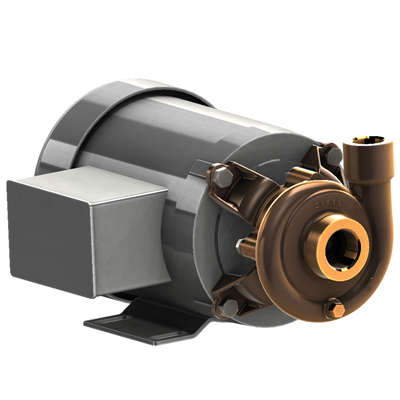

1-1/4” x 1” End Suction Centrifugal Pump
Bronze Marine Pump SWX125
Manufactured in investment cast Nickel Aluminum Bronze CA954, the SWX series of pumps were designed for applications pumping seawater.
The pumps are equipped with enclosed impellers standard to ensure optimum efficiency and low HP ratings. Type 16 Carbon/Silicon Carbide/Viton mechanical seal offers excellent resistance to harsh seawater applications while protecting the motor shaft from exposure. The volute is sealed with a viton o-ring.
All pumps are close coupled to 60/50 HZ TEFC motors with IP (Ingress Protection) rating of IP44 (single phase) to 55 (three phase) compliant with ISO8846 marine ignition duty.
The pump also meets CE and EU requirements.
APPLICATIONMarine
SUCTION AND DISCHARGE1.25" x 1.0" NPT
MATERIALS OF CONSTRUCTION316 SS, Bronze
IMPELLERBalanced to meet ISO1940-1 G6.3 for optimum efficiency
O-RINGViton
SEALT-16 Carbon/Silicon Carbide/Viton/316SS
MOTOR56J TEFC, CE, 60/50 HZ, ISO8846 marine ignitor, Single Phase IP44 with ATO, Three Phase IP55
EU AND CE REQS.Pump meets EU and CE requirements when supplied with CE-rated motor
