SWX150

Manufacturer: MP Pumps

1-1/2” x 1-1/2” End Suction Centrifugal Pump

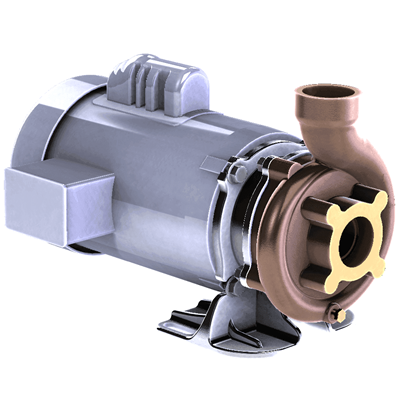

Bronze Marine Pump SWX150

Manufactured in investment cast Nickel Aluminum Bronze CA954, the SWX series of pumps were designed for applications pumping seawater.

The SWX150 model is equipped with an anodized aluminum base for improved mounting strength over the competition while maintaining the same mounting dimensions.

All pumps are close coupled to 60/50 HZ TEFC motors with IP (Ingress Protection) rating of IP44 (single phase) to 55 (three phase) compliant with ISO8846 marine ignition duty.

The pump also meets CE and EU requirements.

APPLICATIONMarine

SUCTION AND DISCHARGE1.5" x 1.5" NPT

MATERIALS OF CONSTRUCTION316 SS, Bronze

IMPELLERBalanced to meet ISO1940-1 G6.3 for optimum efficiency

O-RINGViton

SEALT-16 Carbon/Silicon Carbide/Viton/316SS

MOTOR56J TEFC, CE, 60/50 HZ, ISO8846 marine ignitor, Single Phase IP44 with ATO, Three Phase IP55

EU AND CE REQS.Pump meets EU and CE requirements when supplied with CE-rated motor
