SWX200
Manufacturer: MP Pumps

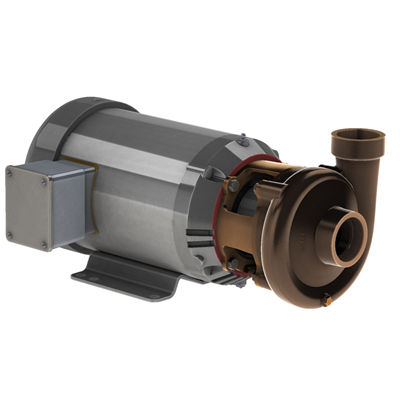

2” x 2” End Suction Centrifugal Pump
Bronze Marine Pump SWX200
Manufactured in investment cast Nickel Aluminum Bronze CA954, the SWX series of pumps were designed for applications pumping seawater.
The pumps are equipped with enclosed impellers standard to ensure optimum efficiency and low HP ratings. The integral impeller sleeve eliminates exposure of the motor shaft. Type 52 Silicon Carbide/Silicon Carbide/Viton mechanical seal offers excellent resistance to harsh seawater applications. The volute is sealed with a viton o-ring.
All pumps are close coupled to 60/50 HZ TEFC motors with IP (Ingress Protection) rating of IP44 (single phase) to 55 (three phase) compliant with ISO8846 marine ignition duty
.
The pump also meets CE and EU requirements.
APPLICATIONMarine
SUCTION AND DISCHARGE2.0" x 2.0" NPT
MATERIALS OF CONSTRUCTION316 SS, Bronze
IMPELLERBalanced to meet ISO1940-1 G6.3 for optimum efficiency
O-RINGViton
SEALT-52 Sil. Carbide/Sil. Carbide/Viton/316SS
MOTOR145/184JM TEFC, CE, 60/50 HZ, IP44 to meet ISO8846 marine ignition duty
EU AND CE REQS.Pump meets EU and CE requirements when supplied with CE-rated motor
