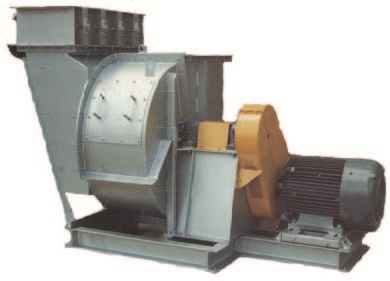

Type XBC
Manufacturer: IAP
Wheels utilize heavy gauge backward curved blades. Efficiency equal or greater than
backward inclined and airfoil with superior static pressure capability. Easily made of special
alloys. Standard catalog sizes from 270 (27" Dia.) to 730 (73" Dia.), custom sizes available.
MAXIMUM PRESSURE40 in. wg.
MAXIMUM FLOW5000-300,000 SWSI 10,000-500,000 DWDI
MAXIMUM TEMPERATURE1200 Degrees F
STATIC EFFICIENCY84%
MATERIAL HANDLINGNone to dry & very light particulates
