VC-10

Manufacturer: American Warming and Ventilating

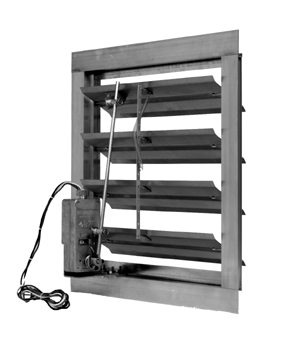

VC-10 1-⅞” Rectangular In-Duct Volume Control Damper.
Volume Control, Single Thickness.

Damper Depth1-7/8"

DescriptionVolume Control, Single Thickness

Max Face Velocity2500 FPM

Max Pressure1 in. wg

Max Temperature200 F

Min Size10" x 10"

Max Size38" x 96"

Frame Material.063 6063-T5 Extruded Aluminum

Blade Material20 Ga. Galvanized Steel, 5" Max Width

Axles3/16" Dia. Galvanized Steel, Stub

BearingsStainless Steel Cup

LinkageGalvanized Steel Brackets, Stainless Steel Shoulder Rivets and Aluminum Linkage Bars

StopsGalvanized Steel

FinishMill

ActuatorManual-Chain and Pulley is Standard (upon request, see actuator options)

SealsNone Is Standard (upon request, see seal options)
