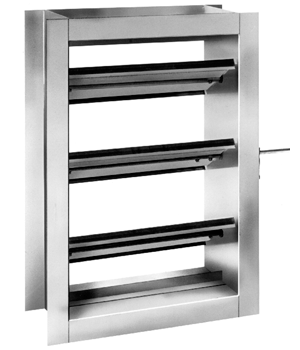

VC 140

Manufacturer: American Warming and Ventilating

2" Rectangular

Damper Depth2"

DescriptionVolume Control, Single Thickness

Max Face Velocity3000 FPM

Max Pressure4 in. wg.

Max Temperature150 F

Min Size12" x 12"

Max Size48" x 96"

Frame Material16 Ga. Galvanized Steel thru 12 Ga. Galvanized Steel

Blade Material16 Ga. Galvanized Steel, 6" Max Width

Axles1/2" Square Plated Steel, Stub

BearingsHeavy Duty Molded Nylon

LinkagePlated Steel Brackets, Brass Barrels and Plated Steel Rod

StopsGalvanized Steel


ActuatorElectric Motor is Standard (upon request, see actuator options)

SealsNone Is Standard (upon request, see seal options)
