Manufacturer: American Warming and Ventilating

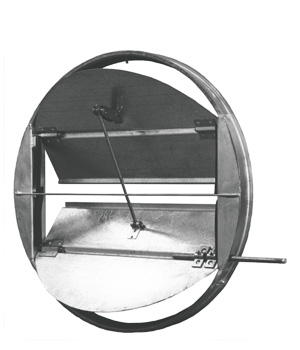

VC-23 2” Round In-Duct Volume Control Damper
Volume Control, Single Thickness, Opposed

Damper Depth2"

DescriptionVolume Control, Single Thickness, Opposed

Max Face Velocity3000 FPM

Max Pressure2 in. wg

Max Temperature180 F

Min Size12" Dia.

Max Size28" Dia.

Frame Material14 Ga. Galvanized Steel

Blade Material16 Ga. Galvanized Steel

Axles1/2" Dia. Plated Steel, Stub

BearingsHeavy Duty Molded Nylon w/ Stainless Steel Thrustwashers

LinkagePlated Steel Brackets, Brass Barrels and Plated Steel Rod

StopsPlated Steel Sheet Metal Screws


Actuator6" Extended Shaft Is Standard (upon request, see actuator options)

SealsNone Is Standard (upon request, see seal options)
