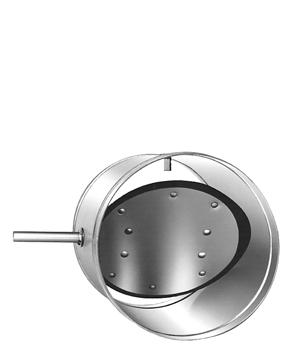

VC-25
Manufacturer: American Warming and Ventilating
VC-24 2” Round In-Duct Volume Control Damper
Volume Control, Double Thickness
Damper Depth10"
DescriptionVolume Control, Double Thickness
Max Face Velocity3000 FPM
Max Pressure6 in. wg
Max Temperature150 F
Min Size4" Dia.
Max Size24" Dia.
Frame Material20 Ga. Galvanized Steel thru 18 Ga. Galvanized Steel
Blade Material14 Ga. Galvanized Double Thickness Steel w/ Neoprene Seal
Axles1/2" Dia. Plated Steel, Stub
BearingsOil Impregnated Bronze
LinkageNone
StopsBolt w/ Locknut
FinishMill
Actuator6" Extended Shaft Is Standard (upon request, see actuator options)
SealsNone Is Standard (upon request, see seal options)
