VC-411
Manufacturer: American Warming and Ventilating

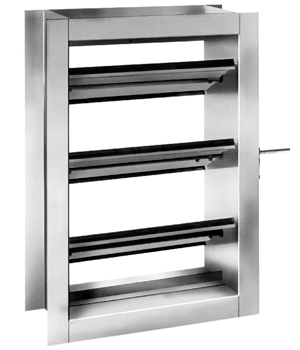

VC-411 8” Rectangular Flange Volume Control Damper.
Volume Control, Single Thickness, Parallel or Opposed.
Damper Depth8"
DescriptionVolume Control, Single Thickness, Parallel or Opposed
Max Face Velocity3000 FPM
Max Pressure10 in. wg.
Max Temperature250 F
Min Size6" x 8"
Max Size48" x 72"
Frame Material14 Ga. Galvanized Steel thru 12 Ga. Galvanized Steel
Blade Material16 Ga. Galvanized Steel, 8" Max Width
Axles3/8" Square Plated Steel, Stub
BearingsOil Impregnated Bronze
LinkagePlated Steel Arms, Stainless Steel Pivots and Galvanized Steel Angle, External Type
StopsGalvanized Steel
FinishMill
Actuator4" Extended Shaft Is Standard (upon request, see actuator options)
SealsNone Is Standard (upon request, see seal options)
