Manufacturer: American Warming and Ventilating

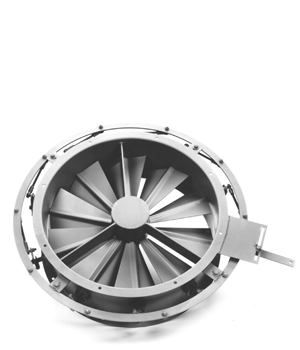

VC-82 9” Medium Duty Inlet Vane Damper
Medium Duty Inlet Vane, Single Thickness

Damper Depth9" Min.

DescriptionMedium Duty Inlet Vane, Single Thickness

Max Face Velocity4000 FPM

Max Pressure10 in. wg

Max Temperature250 F

Min Size12" Dia.

Max Size48" Dia.

Frame Material12 Ga. Mild Steel thru 10 Ga. Mild Steel

Blade Material16 Ga. Mild Steel

Axles1/2" Dia. Plated Steel, Full Length

BearingsStainless Steel Sleeve w/ Stainless Steel Thrustwashers

LinkageSteel Linkage Ring w/ Ball Swivels and Plated Steel Linkage Arms


Finish(1) Coat of Primer

ActuatorMounting Tab Is Standard (upon request, see actuator options)

SealsNone Is Standard (upon request, see seal options)
