VC-83

Manufacturer: American Warming and Ventilating

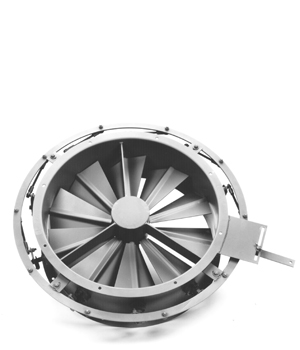

VC-83 12” Heavy Duty Inlet Vane Damper
Heavy Duty Inlet Vane, Single Thickness

Damper Depth12" Min.

DescriptionHeavy Duty Inlet Vane, Single Thickness

Max Face Velocity10000 FPM

Max Pressure90 in. wg

Max Temperature250 F

Min Size12" Dia.

Max Size80" Dia.

Frame Material10 Ga. Mild Steel

Blade Material10 Ga. Mild Steel

Axles1/2" Dia. Thru 3/4" Dia. Plated Steel, Full Length

BearingsRelubricable Ball Bearings w/ Stainless Steel Sleeve and Stainless Steel Thrustwashers

LinkageSteel Linkage Ring w/ Heavy Duty Ball Swivels and Plated Steel Linkage Arms

StopsNone

Finish(1) Coat of Primer

ActuatorMounting Tab Is Standard (upon request, see actuator options)

SealsNone Is Standard (upon request, see seal options)
