Manufacturer: American Warming and Ventilating

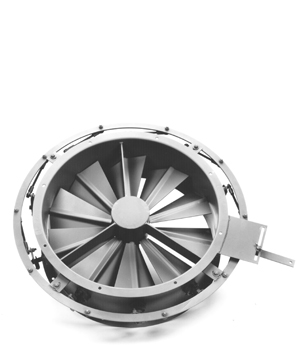

VC-84 12” Heavy Duty Inlet Vane Damper
Heavy Duty Inlet Vane, Single Thickness

Damper Depth12" Min.

DescriptionHeavy Duty Inlet Vane, Single Thickness

Max Face Velocity9500 FPM

Max Pressure105 in. wg

Max Temperature250 F

Min Size16" Dia.

Max Size80" Dia.

Frame Material1/4" thk. Mild Steel

Blade Material10 Ga. Mild Steel

Axles1" Dia. Plated Steel, Full Length

BearingsRelubricable Ball Bearings w/ Stainless Steel Sleeve and Stainless Steel Thrustwashers

LinkageSteel Linkage Ring w/ Heavy Duty Ball Swivels and Plated Steel Linkage Arms


Finish(1) Coat of Primer

ActuatorMounting Tab Is Standard (upon request, see actuator options)

SealsNone Is Standard (upon request, see seal options)
