Manufacturer: American Warming and Ventilating

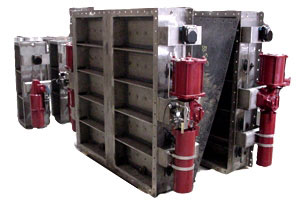

VC-96 Heavy Duty Isolation Damper
Seal Air Heavy Duty Volume Control, Single Thickness

Damper DepthVaries

DescriptionSeal Air Heavy Duty Volume Control, Single Thickness

Max Face Velocity8000+ FPM

Max Pressure60+ in. wg

Max Temperature1200+ F

Min Size12" Dia.

Max Size72" Dia.

Frame MaterialMild Steel Channel, Varies Per Design Criteria

Blade MaterialMild Steel, Varies per Design Criteria

AxlesAlloy Steel, Stub or Full Length

BearingsRelubricable Ball Bearings w/ Double Gland Stuffing Boxes

LinkageHeavy Duty Type, Alloy Steel Bars w/ Stainless Steel Pins and OIB Bearings

StopsMild Steel

Finish(1) Coat of Primer

ActuatorManual, Electric or Pneumatic Options Are Available

SealsAs Required To Meet Design Requirements, Includes Seal Isolation Fan To Prevent System Air From Passing
