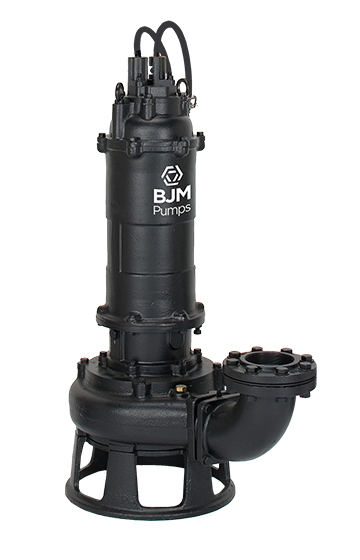

XP-SK Series
Manufacturer: BJM Pumps
Explosion proof electric submersible pumps with shredder action impellers for use in Class 1, Division 1, Groups C & D Hazardous Locations The XP-SK Series shredder pumps are designed to obliterate solids by tearing, breaking and ripping them to pieces. The shredding action is caused by using a cutting impeller with a tungsten carbide tip against a spiral-shaped diffuser plate.
• Shredder pump with FM-approved motor for use in Class I, Division 1, Groups C & D hazardous locations. Available in 208, 230, 460 or 575 Volt 60Hz. Contact factory for 50Hz availability.
• Longer power cord – Standard 33ft. power.
• Epoxy coated motor housing – Superior two part epoxy to protect the motor from exposure to the surrounding liquid.
• Three seal motor protection – Motor is protected by two independent mechanical seals. Lower seal made of silicon carbide/silicon carbide and upper seal is made of carbon/ceramic. An additional lip seal has been installed to help prevent abrasives such as dirt, silt or sand from entering into the seal chamber. Standard elastomers are Buna N (FKM optional).
• Air-filled motor with winding protection and (NEMA) Class F motor insulation. Seal leakage detector(s) in seal chamber offers early warning should water enter the chamber.
• Tough pump construction – Hardened cast iron stands up to rough handling and pumping sandy water unlike pumps with soft resin impellers or plastic exterior components.
• Longer power cord – Standard 33ft. power.
• Epoxy coated motor housing – Superior two part epoxy to protect the motor from exposure to the surrounding liquid.
• Three seal motor protection – Motor is protected by two independent mechanical seals. Lower seal made of silicon carbide/silicon carbide and upper seal is made of carbon/ceramic. An additional lip seal has been installed to help prevent abrasives such as dirt, silt or sand from entering into the seal chamber. Standard elastomers are Buna N (FKM optional).
• Air-filled motor with winding protection and (NEMA) Class F motor insulation. Seal leakage detector(s) in seal chamber offers early warning should water enter the chamber.
• Tough pump construction – Hardened cast iron stands up to rough handling and pumping sandy water unlike pumps with soft resin impellers or plastic exterior components.
